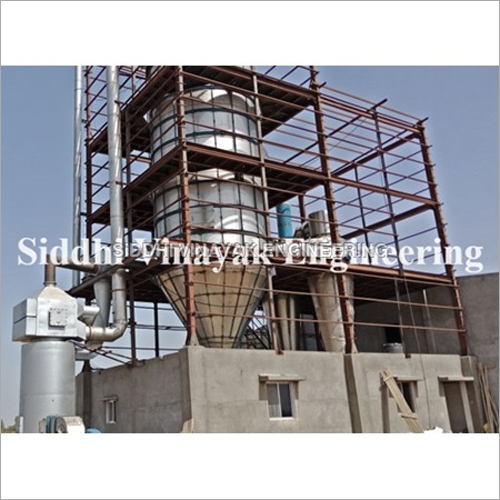

Tomato Spray Dryer

Get a Price/Quote

MOQ : 1 , , Unit

Tomato Spray Dryer Specification

Heat Source
Electric / Steam / Gas

Power
25 kW - 120Kw Watt (w)

Temperature
150C - 25(Inlet), 80C - 90 (Outlet) Celsius (oC)

Fuel Type
Electricity, Natural Gas, Diesel

Material
Stainless Steel (AISI 304/316)

Voltage
380V/440V, 3 Phase, 50/60 Hz Volt (v)

Technology
Spray Drying

Application
Tomato Powder, Food & Chemical Industries

Control Panel
PLC/SCADA Base with Touchscreen

Product Recovery
Cyclone Separator & Bag Filter

Installation Service
Available on request

Capacity
20 kg/hr 500 kg/hr (water evaporation)

Automation Grade
Automatic

Noise Level
75 dB

Cleaning System
CIP (Clean-in-Place)

Safety Features
Explosion Proof Electricals, Temperature Control, Pressure Relief Valve

Product Fineness
80 - 100 mesh

Feeding System
High-pressure pump atomization

Tomato Spray Dryer Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
10 Units Per Month

Delivery Time
15 Days

Tomato Spray Dryer About

We attained an extreme reputation in the market due to our outstanding array of Tomato Spray Dryers. They are produced using the supreme grade parts and components along with the up to the minute technology with the assistance and guidance of our devoted staff. They are designed to cater the various applications of several industries in the most accurate manner. The Tomato Spray Dryers have strong structure, impact resistance, can bear extreme heat, rust proof body, industrial based tensile strength and reasonable price.

Technical Specification

Design	Standard, Customized
Capacity	2 TPD
Automatic Grade	Automatic, Semi-Automatic
Max Temperature	160 - 200
Brand	Siddhi Vinayak Engineering
Size	Customized
Material	Stainless Steel 304
Type	Versatile
Power Source	Electricity
Voltage (V)	440 VAC / 50 Hz
Power Exhaust Fan (Kw)	55
Surface Finish	Mat Finish
Usage	Food Products
Application	Vegetable and Fruit Products

Advanced Spray Drying Technology

This tomato spray dryer features modern spray drying techniques with an efficient feeding system and customizable designs to cater to diverse production needs. Automated PLC/SCADA based operations ensure optimal process control and precision at every step, enhancing efficiency and product consistency for both small and large-scale applications.

Superior Product Recovery & Safety

The dryers product recovery system combines cyclone separator and bag filter technology, ensuring minimal powder loss. Safety is paramount, with explosion-proof electricals, temperature and pressure controls, and a low noise level (75 dB), making it ideal for compliance-driven and worker-friendly operations in demanding environments.

Cleaning & Maintenance Made Easy

Featuring a CIP (Clean-in-Place) system, the spray dryer minimizes downtime and reduces manual intervention, ensuring high hygiene standards. The use of AISI 304/316 stainless steel construction further streamlines cleaning and maintenance, enhancing longevity and food safety.

FAQs of Tomato Spray Dryer:

Q: How does the tomato spray dryer work to convert liquid extract into powder?

A: The machine uses high-pressure pump atomization to spray liquid tomato extract into a heated chamber. Instantly, the droplets contact hot air (inlet 150C250C), causing rapid evaporation and resulting in fine powder, which is then collected by a cyclone separator and bag filter.

Q: What are the main benefits of using this spray dryer for tomato powder production?

A: Key advantages include consistent product fineness (80100 mesh), scalable capacity (20500 kg/hr), automatic PLC/SCADA control, high product recovery, safe operation with explosion-proof features, and easy cleaning through the CIP systemmaking it ideal for food and chemical industries.

Q: When is installation and commissioning service provided for this machine?

A: Installation and commissioning services are available on request as part of our customer support. Our experts ensure the dryer is correctly set up at your facility to match specified capacity and process requirements.

Q: Where can this tomato spray dryer be utilized?

A: This spray dryer is suitable for application in food processing plants producing tomato powder, as well as chemical industry setups requiring powder drying. Its robust, customizable design supports both industrial exporters and suppliers across India.

Q: What safety features are integrated in the spray dryer?

A: The dryer includes explosion-proof electrical components, advanced temperature controls, pressure relief valves, and operates at a low noise level (75 dB) to ensure a safe working environment for operators and compliance with industrial safety standards.

Q: How is cleaning and maintenance managed on this equipment?

A: The built-in CIP (Clean-in-Place) system enables automated, effective internal cleaning without the need for disassembly, simplifying maintenance and ensuring hygiene, especially important for food-grade applications.
